Custom Transform (Apex)

Available: Base **Developer feature (Apex required)

Overview

When the built-in Formula, Utility Flows or standard mapping actions aren’t enough, you can plug in custom Apex transforms.
A custom transform is a small Apex class that implements the Plinqx transform_Interface:

Your class implements PlinqxV2.transform_Interface.itransform_Interface and provides the logic in doTransform.

The transformation engine will pass both the Source Object and the Source value as input object parameters to your class.

When to use

  • You need logic that is easier/clearer in code than in a formula.

  • You must call utility methods or perform complex parsing.

  • You want a reusable transformation used by multiple mappings.

Contract

  • Signature: Object doTransform(Object objRecord, Object value)

  • Input: The record context (may be null) and the source value for the field/mapping (may be null).

  • Output: The transformed value (return the desired type; engine will coerce to the mapping’s target type when possible).

  • Side-effects: Avoid DML/callouts; keep transforms pure and fast.

  • Sharing: Use with sharing unless you have a specific reason not to.

Implementation example

The example below formats a phone number into (XXX) XXX-XXXX. It implements the V2 transform interface and returns the original value if the input is not 10 digits.

```apex public class sample_designer_transform extends PlinqxV2.transform_Interface.transform_InterfaceBase implements PlinqxV2.transform_Interface.itransform_Interface {

/**
 * @description Formats a phone number to (XXX) XXX-XXXX format.
 * @param objRecord The record context (unused in this implementation)
 * @param value The phone number value to transform
 * @return The formatted phone number or original value if invalid
 */
public Object doTransform(Object objRecord, Object value) {
    if (value == null) {
        return null;
    }

    String phone = String.valueOf(value).replaceAll('[^0-9]', '');

    if (phone.length() == 10) {
        return '(' + phone.substring(0, 3) + ') ' +
               phone.substring(3, 6) + '-' +
               phone.substring(6);
    }

    return value;
} }

```

Tips

  • Handle nulls defensively.

  • Validate and return the correct type (e.g., String, Decimal, Boolean, Date, etc.).

  • Prefer small, single-purpose transforms you can compose.

Registering the class

The mapping engine activates your class via Type.forName(className):

  • In your mapping configuration, set the Class Name to your Apex class
  • The class must be public or global and accessible to the running user/context.

Unit test requirement

Every custom transform must ship with a unit test.

Example:

```apex

@IsTest private class sample_designer_transformTest {

/**
 * @description Tests doTransform with a valid 10-digit phone number.
 *              Verifies the phone is formatted to (XXX) XXX-XXXX format.
 */
@IsTest
static void doTransform_validTenDigitPhone_returnsFormattedPhone() {
    // Arrange
    sample_designer_transform transformer = new sample_designer_transform();
    String inputPhone = '1234567890';

    // Act
    Object result = transformer.doTransform(null, inputPhone);

    // Assert
    System.assertEquals('(123) 456-7890', result, 'Should format 10-digit phone to (XXX) XXX-XXXX');
}

/**
 * @description Tests doTransform with a phone number containing special characters.
 *              Verifies special characters are stripped and phone is formatted correctly.
 */
@IsTest
static void doTransform_phoneWithSpecialCharacters_stripsAndFormats() {
    // Arrange
    sample_designer_transform transformer = new sample_designer_transform();
    String inputPhone = '(123) 456-7890';

    // Act
    Object result = transformer.doTransform(null, inputPhone);

    // Assert
    System.assertEquals('(123) 456-7890', result, 'Should strip special chars and format correctly');
}

/**
 * @description Tests doTransform with a phone number containing dashes and spaces.
 *              Verifies the phone is cleaned and formatted correctly.
 */
@IsTest
static void doTransform_phoneWithDashesAndSpaces_stripsAndFormats() {
    // Arrange
    sample_designer_transform transformer = new sample_designer_transform();
    String inputPhone = '123-456-7890';

    // Act
    Object result = transformer.doTransform(null, inputPhone);

    // Assert
    System.assertEquals('(123) 456-7890', result, 'Should strip dashes and format correctly');
}

/**
 * @description Tests doTransform with a null value.
 *              Verifies null is returned when input is null.
 */
@IsTest
static void doTransform_nullValue_returnsNull() {
    // Arrange
    sample_designer_transform transformer = new sample_designer_transform();

    // Act
    Object result = transformer.doTransform(null, null);

    // Assert
    System.assertEquals(null, result, 'Should return null when input is null');
}

/**
 * @description Tests doTransform with a phone number shorter than 10 digits.
 *              Verifies original value is returned unchanged.
 */
@IsTest
static void doTransform_phoneTooShort_returnsOriginalValue() {
    // Arrange
    sample_designer_transform transformer = new sample_designer_transform();
    String inputPhone = '12345';

    // Act
    Object result = transformer.doTransform(null, inputPhone);

    // Assert
    System.assertEquals('12345', result, 'Should return original value when less than 10 digits');
}

/**
 * @description Tests doTransform with a phone number longer than 10 digits.
 *              Verifies original value is returned unchanged.
 */
@IsTest
static void doTransform_phoneTooLong_returnsOriginalValue() {
    // Arrange
    sample_designer_transform transformer = new sample_designer_transform();
    String inputPhone = '12345678901';

    // Act
    Object result = transformer.doTransform(null, inputPhone);

    // Assert
    System.assertEquals('12345678901', result, 'Should return original value when more than 10 digits');
}

/**
 * @description Tests doTransform with an empty string.
 *              Verifies original value is returned unchanged.
 */
@IsTest
static void doTransform_emptyString_returnsOriginalValue() {
    // Arrange
    sample_designer_transform transformer = new sample_designer_transform();
    String inputPhone = '';

    // Act
    Object result = transformer.doTransform(null, inputPhone);

    // Assert
    System.assertEquals('', result, 'Should return empty string unchanged');
}

/**
 * @description Tests doTransform with an objRecord parameter provided.
 *              Verifies the objRecord is ignored and phone is still formatted.
 */
@IsTest
static void doTransform_withObjRecord_ignoresRecordAndFormatsPhone() {
    // Arrange
    sample_designer_transform transformer = new sample_designer_transform();
    Map<String, Object> objRecord = new Map<String, Object>{
        'Name' => 'Test Record',
        'Phone' => '9999999999'
    };
    String inputPhone = '1234567890';

    // Act
    Object result = transformer.doTransform(objRecord, inputPhone);

    // Assert
    System.assertEquals('(123) 456-7890', result, 'Should ignore objRecord and format phone from value parameter');
}

}

```

Why tests matter

  • Enforce correct behaviour across orgs/environments.

  • Prevent regressions when transforms evolve.

  • Required for deployment in many pipelines and managed-package contexts.

Usage in a mapping

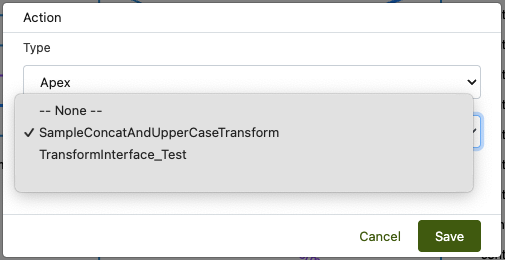

  1. Open your Mapping → add an Action of type Apex (name may vary in UI).

  2. Select the Class Name (only Apex classes that implement itransform_Interface will be listed *implements PlinqxV2.transform_Interface.itransform_Interface*).

  3. Select the Active checkbox.

  4. Click Save (the engine will call doTransform(objRecord, value) during the mapping).

Best practices

  • Pure functions: No DML/callouts; return quickly.

  • Type safety: Cast and validate; throw a clear exception for unsupported input.

  • Null handling: Decide and document whether null returns null or a default.

  • Idempotency: Same input → same output.

  • Logging: Only log when essential; avoid noisy debug in production runs.

Troubleshooting

  • Type.forName returns null
    Use the fully-qualified class name with namespace (e.g., yourNs.MyTransform).

  • Invalid type error
    Ensure the class is public/global, compiled, and in the same org.

  • Wrong output type
    Return the actual type expected by the target mapping (e.g., a Decimal for numeric fields).

  • Unexpected nulls
    Add guards in doTransform and unit tests for null/empty inputs.
