API Service Template

Summary: The API Service Template equips implementers with a variety of inputs derived from the RestContext class itself, seamlessly integrating these into the flow. When your API service is connected to a flow utilizing the Plin

Introduction

The API Service Template equips implementers with a variety of inputs derived from the RestContext class itself, seamlessly integrating these into the flow. When your API service is connected to a flow utilizing the Plinqx API Service Template, all input and output variables are pre-configured for your convenience.

Creating a New Email Service Flow

To create a new API Service Flow in Salesforce.

1. In Setup go to ‘Flows’.

2. Click the ‘New Flow’ button.

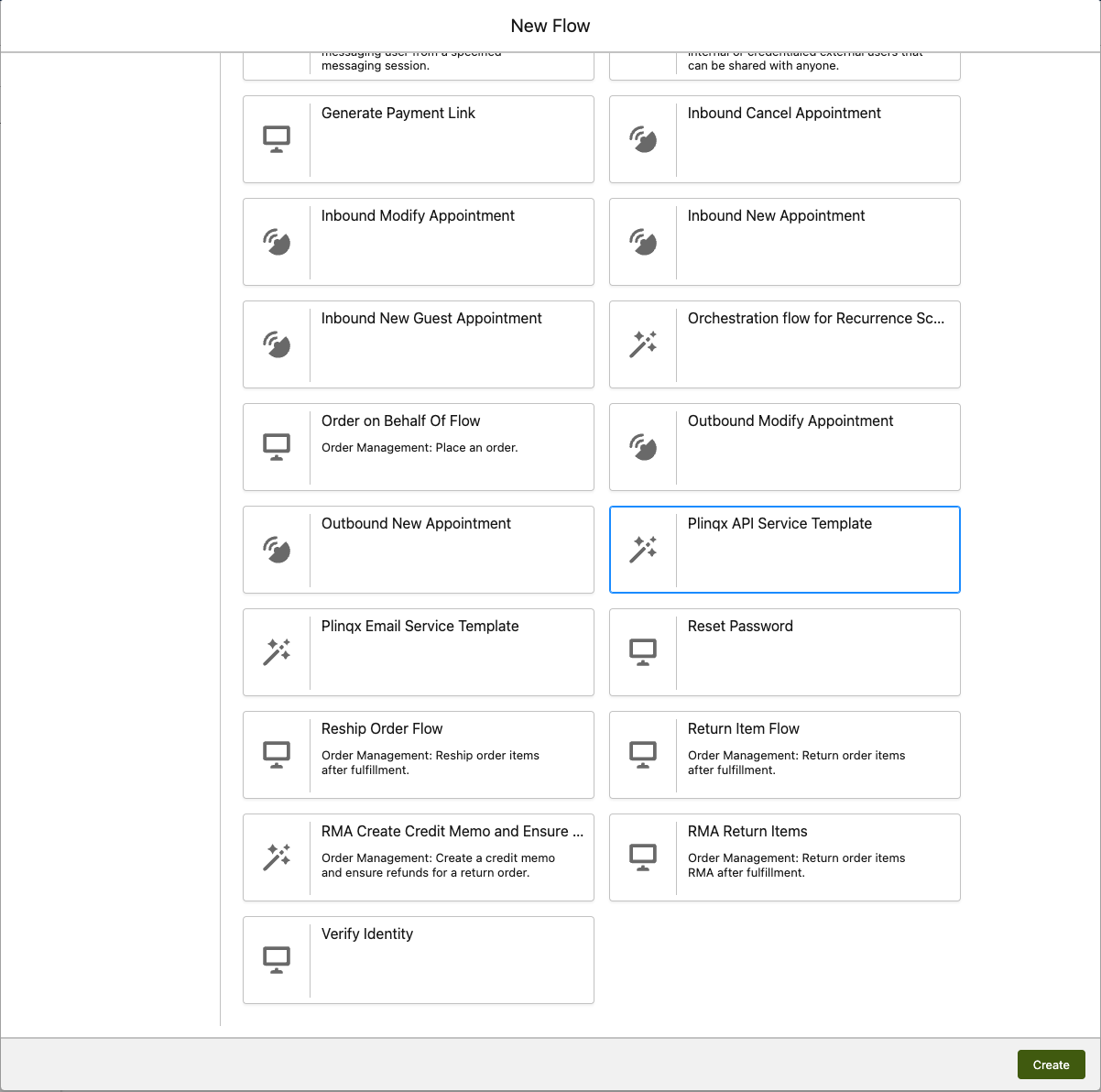

3. From the new flow screen, select the ‘All + Templates’ tab.

4. From here search and select the Plinqx API Service Template from the list.

Layout

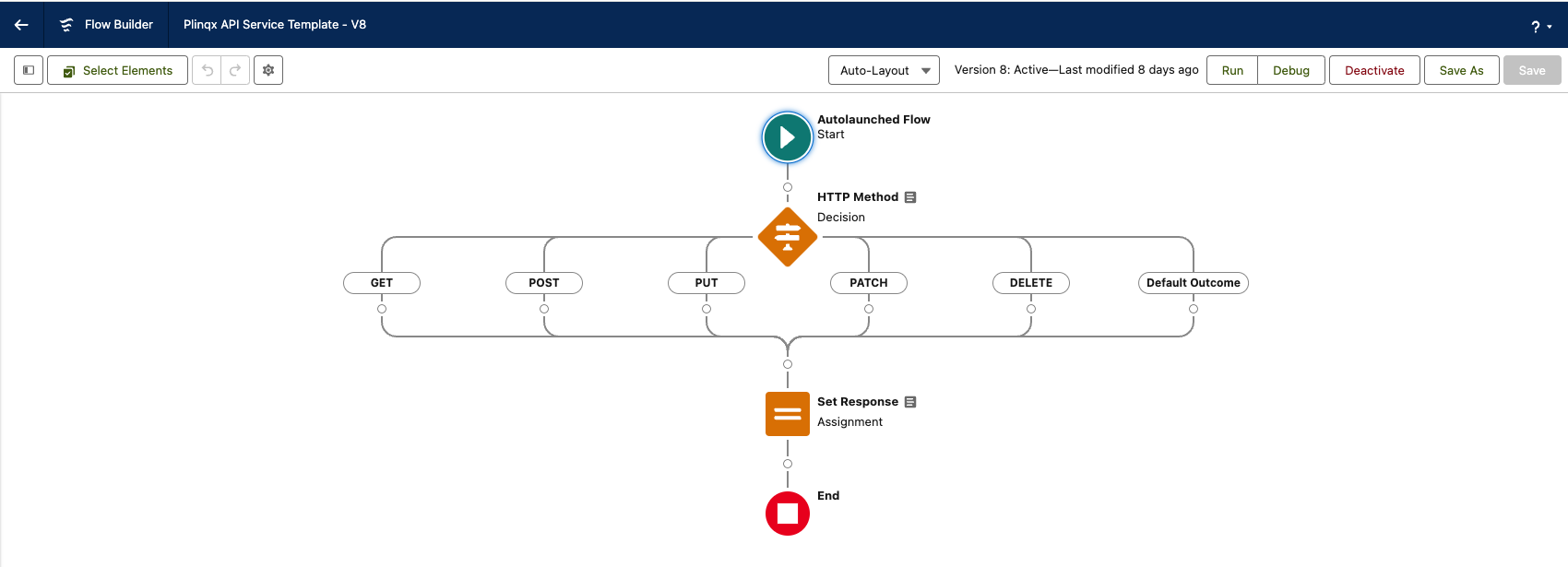

The API Service Template comes ready-made to offer comprehensive coverage of all HTTP scenarios, including GET, POST, PUT, PATCH, and DELETE. You can utilize this as a foundation to seamlessly expand upon your desired logic.

Always keep in mind the guidance outlined in “Approaching a New Integration with Plinqx,” “Considerations for Plinqx in Salesforce,” and adhere to Plinqx Best Practices throughout your design process.

Please see the below table for avaibable input and output variables within the template

Variable	Type	Input / Output	Description
request	Apex-Defined	Input	The request of the API call made to your API Service
response	Apex-Defined	Output	The response of your API service flow

Variables Explained

Request

The request Apex-Defined variable is a wrapper that combines all the important inbout required for your logic in the flow. These inputs are gathered by Plinqx from the Rest Request that has been executed as part of the integration call to your defined service.

It has the following attributes:

Attribute	Type	Description
headerList	Collection of PlinqxV2.RequestKeyValuePair	Both standard and custom HTTP request headers as key/value pairs. Custom headers can include agreed values such as x-page-size = 10. Use the Get Key Value component to extract specific keys.
httpMethod	String/Text	The HTTP method that was called: GET, POST, PUT, PATCH, or DELETE.
remoteAddress	String/Text	The IP address of the client making the request.
requestBody	String/Text	JSON body of the request. Use JSON Parser to read it, or Convert to JSON Collection / Transform JSON Object to support your logic.
requestURI	String/Text	The URL string after https://<your instance>/services/apexrest/PlinqxV2/v1/services/... for the API service that was called.
resourcePath	String/Text	The REST resource path for the request.
parameters	String/Text	A JSON string representing the parameters passed.
parameterList	List of String / Collection of Text	Not in use.
topicparameterList	Collection of PlinqxV2.RequestKeyValuePair	Topic path parameters. Example: service account/{0}/{1} with request account/us/12345 yields keys 0=us, 1=12345. Use Get Key Value to extract keys.
topics	String/Text	A JSON string representing the topicparameterList.
qryparameterList	Collection of PlinqxV2.RequestKeyValuePair	Query string parameters. Example: account?accountNr=1234&country=us yields accountNr=1234, country=us. Use Get Key Value to extract keys.
qryparameters	String/Text	A JSON string representing the qryparameterList.

Response

The response Apex-Defined variable is a wrapper passes the output of your flow logic back to the client via Plinqx. This wrapper is processed within Plinqx and presented to the client as a REST Response.

It has the following attributes:

Attribute	Type	Description
headerList	Collection of PlinqxV2.RequestKeyValuePair	Standard and custom HTTP response headers as key/value pairs (for example x-page-size = 10).
statusCode	Integer / Number	HTTP status code returned to the client. Return 200 or 201 on success; handle other codes for errors. See HTTP status codes.
status	String/Text	Short status message returned to the client (industry-standard HTTP messages).
responseBody	String/Text	JSON response text returned to the client. Typically built with text templates, formula text variables, Write JSON, Transform JSON, Convert SObject to JSON, Execute SOQL, and/or Convert CSV to JSON.
messageId	String/Text	Not in use.
